Stop Dismounting to Print: How to Mount a ZQ630 Plus on Your Forklift With External Media and Hardwired Power

By The ZPS Store  |  Mobile Printers  |  Forklift-Mounted Printing Guide

This is a setup our sales team walks through regularly with warehouse operations managers looking to reduce label printing downtime on the forklift floor. The hardware combination is straightforward once you know the right parts. Here is exactly how it works.

The Problem With Belt-Worn Mobile Printing on a Forklift

A standard mobile printer worn on a belt works well for warehouse workers on foot. On a forklift it creates friction. The operator has to dismount or awkwardly reach to the printer, the small belt-worn roll runs out quickly at high print volumes requiring frequent stops to reload, and if the printer is running on battery it needs to be charged and managed as a separate device. None of these are showstoppers in light-duty applications. In a high-volume forklift labeling environment they add up to meaningful downtime across a shift.

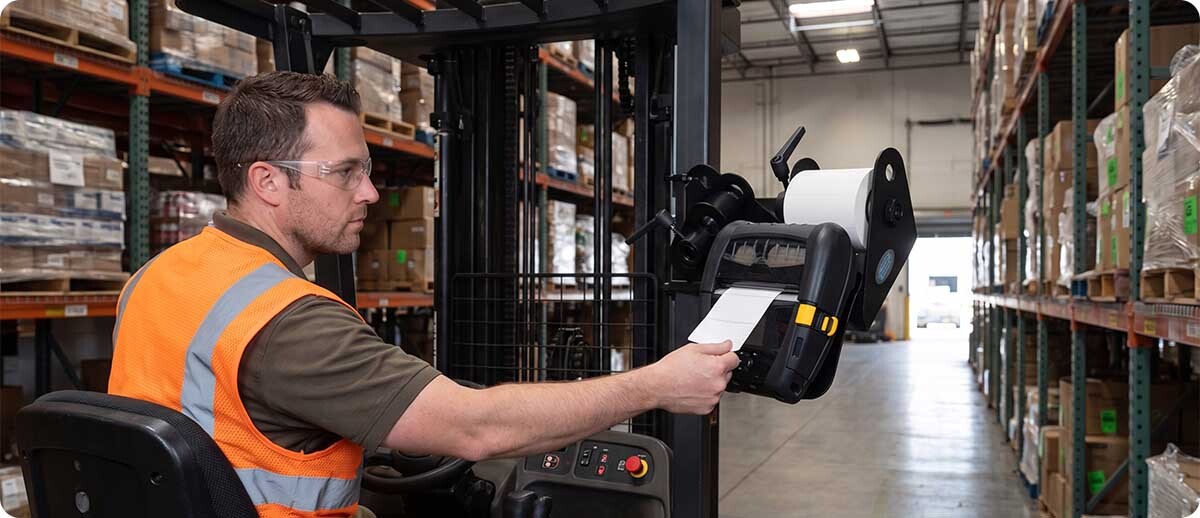

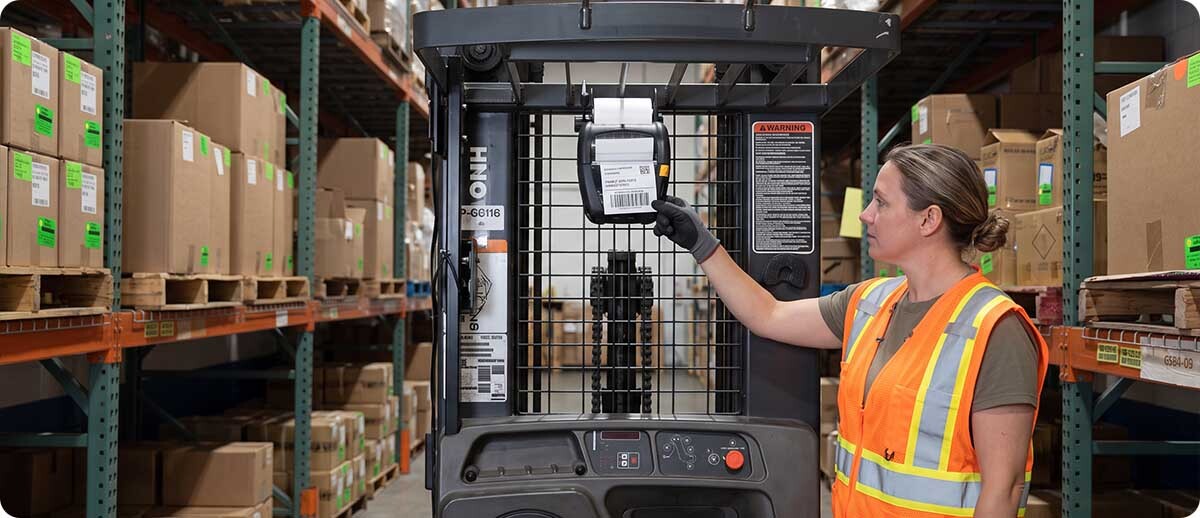

The vehicle-mounted configuration solves all three. The printer is positioned within reach of the operator without dismounting. A large external media roll feeds through the back of the mount, dramatically increasing the labels available before a reload is needed. And hardwiring the printer to the forklift's own power eliminates battery management entirely.

Why the ZQ630 Plus Is the Right Printer for This Setup

The ZQ630 Plus is Zebra's flagship 4-inch mobile printer and the one Zebra specifically designed for vehicle-mounted applications. It supports Wi-Fi 6 for reliable connectivity across the warehouse floor, has a 3,250mAh standard battery or 6,800mAh extended battery for operations that don't hardwire, and includes instant wake-on-status so there's no warmup delay when a print job arrives.

The design of the mount kit matters here. Zebra's forklift mount kit for the ZQ630 (P1050667-035) includes both the U-Arm bracket for securing the printer to the vehicle and a fanfold bin for external media. The fanfold bin allows a large external label roll or fanfold stack to sit in the bin and feed through the back of the mounted printer, bypassing the printer's internal roll capacity entirely. Instead of the standard 3-inch roll that fits inside the printer, the operator works from a large external supply that can hold several times more labels per reload. That's the key to dramatically reducing roll change frequency in a high-volume forklift labeling operation.

Hardwiring to the Forklift: Eliminating Battery Management

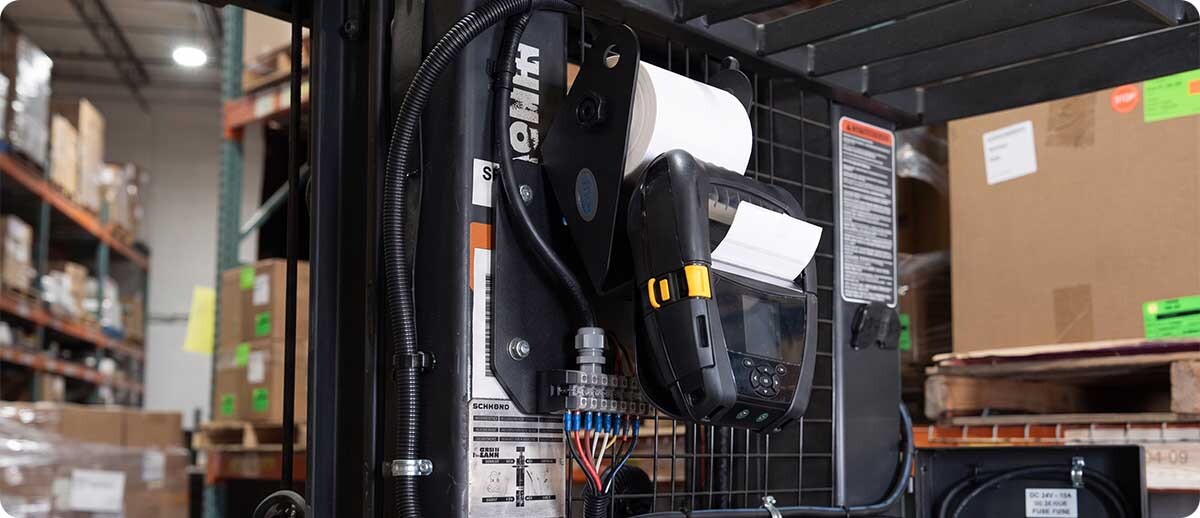

The ZQ630 vehicle charging cradle (P1050667-026) accepts 15-60V DC input, which covers the voltage range of most standard electric and propane forklifts. When wired directly to the forklift's power system, the printer charges continuously whenever the truck is running and stays at full charge throughout the shift without any operator action. No pulling the printer to a charging station at shift start, no mid-shift battery swap, no tracking battery levels across a fleet of printer-and-forklift combinations.

For operations looking at a larger project with multiple forklifts and specific mounting requirements, our team can work up a quote for the full hardware package including Gamber Johnson heavy-duty vehicle mounts that are designed for demanding forklift environments where standard RAM arm mounts may not provide enough stability. Gamber Johnson mounts are built for the vibration, shock, and continuous-duty conditions of industrial lift truck use. Reference quote AAQ19153 with our team for the hardwired forklift configuration.

The Hardware You Need

Quick Questions

How much does the external media bin increase labels per reload?

The internal roll capacity of the ZQ630 Plus is a standard mobile printer roll, typically a few hundred labels depending on label size. The fanfold bin in the P1050667-035 mount kit holds an external supply that can be significantly larger, depending on how much media you stage at the forklift. Many operations use a large fanfold stack or a high-count roll in the bin that lasts an entire shift without a reload. The exact count depends on your label size and the supply you stock at each forklift. The short answer is it's a meaningful improvement over the internal roll alone.

Does the forklift's voltage matter for the vehicle charging cradle?

The P1050667-026 cradle accepts 15-60V DC, which covers the most common electric forklift battery voltages including 24V, 36V, and 48V systems, as well as many propane and diesel truck electrical systems. If your forklift operates outside that range, contact us before ordering and we can confirm compatibility with your specific truck electrical system.

When should we spec Gamber Johnson mounts vs the standard RAM arm?

Gamber Johnson mounts are the right choice for high-vibration environments or operations where the forklift runs continuously in demanding conditions like rough outdoor terrain, high-cycle dock environments, or heavy industrial settings where standard RAM arm mounts may loosen over time. If your forklifts operate in standard indoor warehouse conditions, the RAM arm configuration is typically sufficient. For a multi-forklift project or for operations with demanding physical environments, reach out and reference quote AAQ19153 for the full Gamber Johnson hardwired configuration.

If you want a quote on the full ZQ630 Plus forklift-mounted setup for one truck or a full fleet, fill out the form below or reference quote AAQ19153 with our team. We can spec the right mounting configuration for your specific forklift type and print volume.
